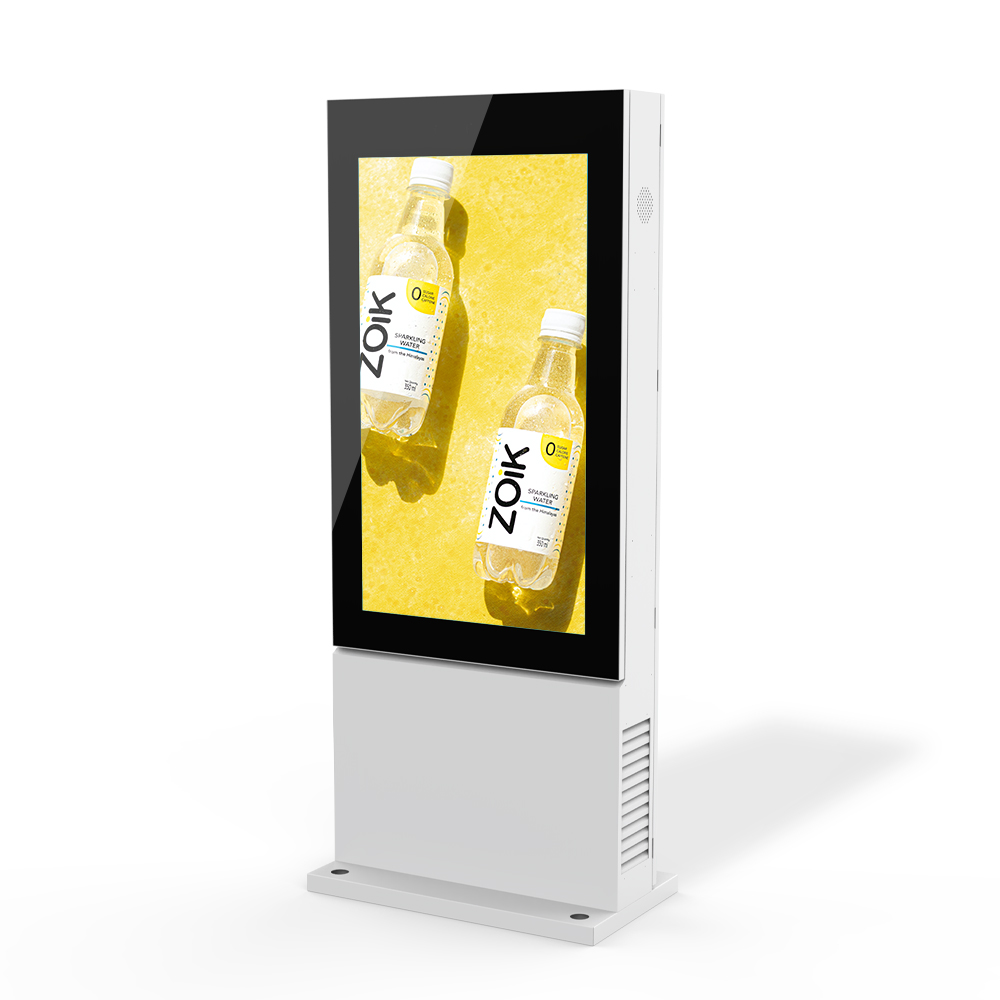

BS986 Outdoor Internet maintenance Digital Touch Screen Signage Display
Upit za proizvod
×Make Your Message. Widely. Effectively.
| Model Number | BS986 |
| Brand Name | Becker Screen |
| Certification | CE FCC ROHS ISO IP66 IK10(option) |
| Place of Origin | Shenzhen, China |
| Application | Outdoor |
| Input Voltage | AC100~240V 50 /60 HZ |
| Packaging | Bubble bag+packing foam+carton+wooden case |
| Delivery Detail | By Sea or Air / Door to Door |
Available Sizes: Outdoor 32″ ~86″ Standee Digital Kiosk
With Free Cloud Service
CMS Cloud Service | Centralized Content Management & Analytics
Core Value:
Unified Content Control: Deploy, schedule, and update multimedia content (videos, ads, alerts) across 10,000+ screens via a single dashboard.
RDM Platform
Core Value:
Device Health Monitoring: Proactively diagnose hardware/software faults (power, connectivity, temperature) via IoT sensors.
Predictive Maintenance: Predict failures 48+ hours in advance, slashing downtime by 60%.
Energy Optimization: Automate power schedules based on usage patterns, cutting energy costs by 25%.
Each product includes 10 types of sensors: a light sensor, a door opening sensor, a humidity sensor, a temperature sensor, a vibration sensor, a safety monitoring sensor, a ponding sensor, a smog sensor, a collision sensor, and a tilt sensor.
Smart Maintenance:
▪ Real-time Status Monitoring
▪ Remote Troubleshooting
▪ Group Performance Diagnostics
▪ Anomaly Alert System
| Model | BS986 PC Version | BS986 Android Version | |
|
Screen |
Panel Brand | Samsung & LG Full New 100% A+ Grade Brand Panel | |
| Panel size | 55″ | ||
| Display size | 1209mm(H)×680mm(V) | ||
| Display ratio | 16:9 | ||
| Resolution | 1080*1920 | ||
| Viewing angle | 178°/178°(H/V) | ||
| Color | 16.7M | ||
| Back light | LED | ||
| Brightness | 3500 cd/m2 | ||
| Contrast ratio | 3000:1 | ||
|
OS System |
main board:i5-3317U(optional) | CPU:Cortex A17 1.8 GHz | |
| RAM:4G,SSD:128G(optional) | RAM:2G,EMMC:8G | ||
| Operation | Windows 7(optional,win8,win8.1,win10) | Android 4.2(optional,Android4.4.4/4.2.2/5.1.1/6.0.1/7.1.2) | |
| Connection to network | RJ45, WIFI (4G,optional) | RJ45 ,WIFI、4G(optional) | |
|
Touch Screen system
|
Touch screen | touch foil, capacitive | touch foil, capacitive
|
| Touch ways | finger,touch pen | finger,touch pen | |
| Touch dots | 10dots (optional,20dots,40dots) | 10dots (optional,20dots,40dots) | |
| Durability | More than 50 million touch | More than 50 million touch | |
|
Power |
Power | 450w | 450W |
| Voltage | AC100-240V 50/60HZ | AC100-240V 50/60HZ | |
| Stability | good | good | |
|
Instructions |
Interface | VGA/HDMI/USB | HDMI/USB/TF card slot |
| Working
temperature |
-30°C ~ 60°C(with air conditioner）
-10°C ~55°C(with fan cooling） -30°C ~ 55°C(with fan cooling+heater) |
-30°C ~ 60°C(with air conditioner）
-10°C ~55°C(with fan cooling） -30°C ~ 55°C(with fan cooling+heater)
|
|
| Material | Aluminum alloy,tempered glass | Aluminum alloy,tempered glass | |
| Surface | Spraying,frosted aluminum | Spraying,frosted aluminum | |
| Size | Undetermined | Undetermined | |
| Wight | Undetermined | Undetermined | |
|
Body |
Shell | Galvanized steel sheet. Thickness:2mm. Aluminum ,Stainless steel(optional) | |
| Color | Black , white , silver or customized colors | ||
| Packing | carton, wooden case, flight case （optional） | ||
|
Optional Functions |
Anti-dazzle、Anti-graffiti、Anti-glare,Anti-refection、Anti-UV、Anti-IR、Water-proof、dust-proof、vandal proof | ||
| 3G/4G Capability | |||
| Human sensor、Light sensor、Screen sensor、Humidity sensor、Temperature sensor、Vibration sensor、Safty monitoring sensor、Ponding sensor、Smog sensor、Collision sensor、Tilt sensor | |||
