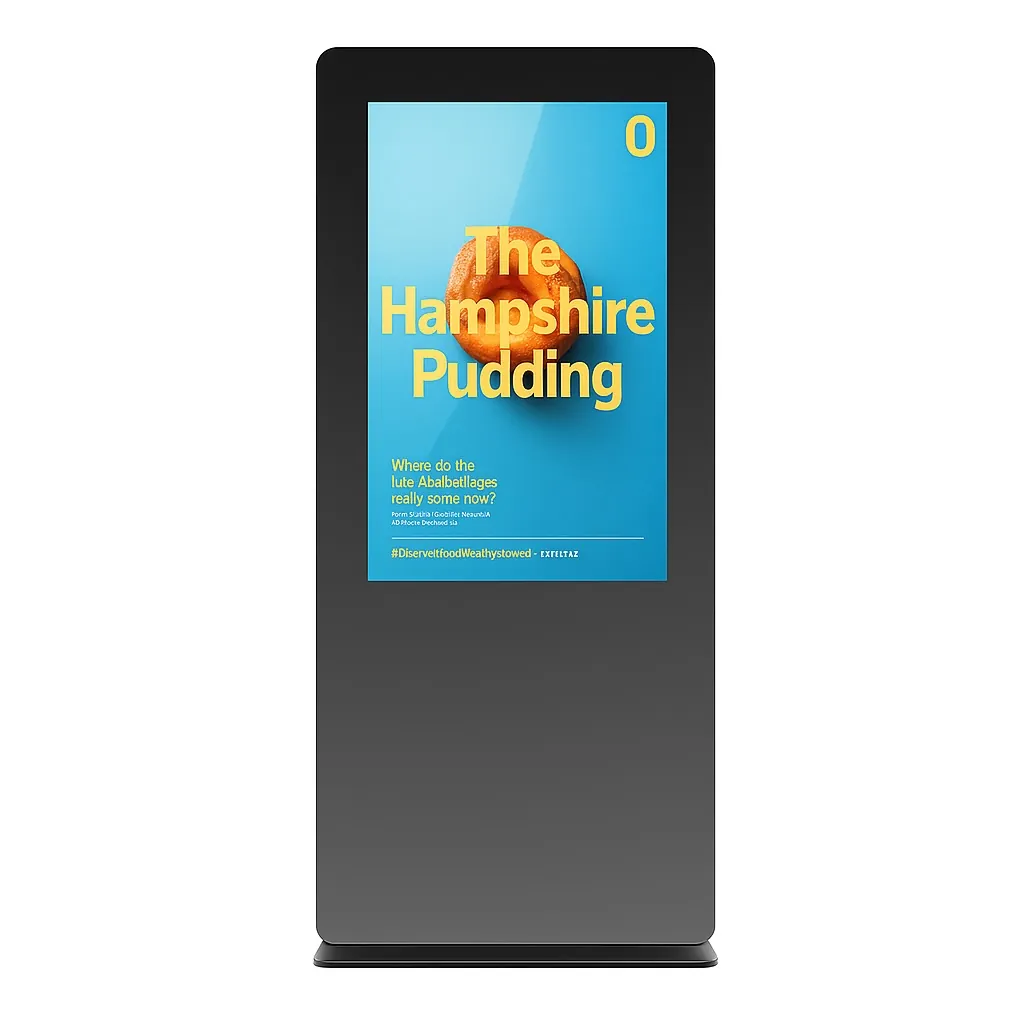

BS930 High Brightness Waterproof Outdoor Dual Screen LCD Advertising Player
Upit za proizvod
×Make Your Message. Widely. Effectively.
| Model Number | BS930 |
| Brand Name | Becker Screen |
| Certification | CE FCC ROHS IP65 |
| Place of Origin | Shenzhen, China |
| Application | Outdoor |
| Input Voltage | AC100~240V 50 /60 HZ |
| Packaging | Bubble bag+packing foam+carton+wooden case |
| Delivery Detail | Batch order 15-30 days |
- Available Sizes: 19″ ~86″
- （Option）Can pass the IK10 anti-collision level test;
- High visibility、anti-reflection;
- （Option）Supporting Becker outdoor LCD maintenance cloud（OMC）
- （Option）Polarzed sunglasses supporting
- (Option)can supporting UV cut off and IR blocking.
Outdoor Maintenance Cloud (OMC) System
Key Functions
Each product includes 10 types of sensors: a light sensor, a door opening sensor, a humidity sensor, a temperature sensor, a vibration sensor, a safety monitoring sensor, a ponding sensor, a smog sensor, a collision sensor, and a tilt sensor.
Smart Maintenance:
Real-time Status Monitoring
Remote Troubleshooting
Group Performance Diagnostics
Anomaly Alert System
Cloud Services:
CMS Platform: http://inf.marveltechgroup.com
OMC Platform: http://omc.marveltechgroup.com
Custom Server Deployment Support
Control interface supporting:
1. RS232 Marve provide API and instruction protocol.
2. TCP/IP Becker provide technical supporting.
| Model | MWE930 PC Version | MWE930 Android Version | |
|
Screen |
Panel Brand | Samsung & LG Full New 100% A+ Grade Brand Panel | |
| Panel size | 55″(19″ ~98″) | ||
| Display size | 1209mm(H)×680mm(V) | ||
| Display ratio | 16:9 | ||
| Resolution | 1080*1920 | ||
| Viewing angle | 89/89/89/89 (Min.)(CR≥10) | ||
| Color | 16.7M | ||
| Back light | LED | ||
| Brightness | 2500 cd/m2 | ||
| Contrast ratio | 3000:1 | ||
|
OS System |
main board:i5-3317U(optional) | CPU:RK3288(optional) | |
| RAM:4G,SSD:128G(optional) | RAM:2G,EMMC:8G(optional) | ||
| Operation | Windows 7(optional,win8,win8.1,win10) | Android 4.2(optional,Android4.4.4/4.2.2/5.1.1/6.0.1/7.1.2) | |
| Connection to network | RJ45, WIFI (4G,optional) | RJ45, WIFI (4G,optional) | |
|
Touch Screen system
|
Touch screen | touch foil, capacitive
|
touch foil, capacitive
|
| Touch ways | finger,touch pen | finger,touch pen | |
| Touch dots | 10dots (optional,20dots,40dots) | 10dots (optional,20dots,40dots) | |
| Durability | More than 50 million touch | More than 50 million touch | |
|
Power |
Power | 450W | 450W |
| Voltage | AC100-240V 50/60HZ | AC100-240V 50/60HZ | |
| Stability | good | good | |
|
Instructions |
Interface | VGA/HDMI/USB | HDMI/USB/SD |
| Working
temperature |
-30°C ~ 60°C(with air conditioner）
-10°C ~55°C(with fan cooling） -30°C ~ 55°C(with fan cooling+heater) |
-30°C ~ 60°C(with air conditioner）
-10°C ~55°C(with fan cooling） -30°C ~ 55°C(with fan cooling+heater) |
|
| Material | Aluminum alloy,tempered glass | Aluminum alloy,tempered glass | |
| Surface | Spraying,frosted aluminum | Spraying,frosted aluminum | |
| Size | Undetermined | Undetermined | |
| Weight | Undetermined | Undetermined | |
|
Body |
Shell | Galvanized steel sheet. Thickness:2mm. | |
| Color | Black , white , silver or customized colors | ||
| Packing | By carton, wooden case, flight case （optional） | ||
|
Optional Functions |
Anti-dazzle、Anti-graffiti、Anti-glare,Anti-refection、
Anti-UV、Anti-IR、Water-proof、dust-proof、vandal proof |
||
| 3G/4G Capability | |||
| Human sensor、Light sensor、Screen sensor、Humidity sensor、Temperature sensor、
Vibration sensor、Safty monitoring sensor、Ponding sensor、Smog sensor、Collision sensor、Tilt sensor |
|||
| Fan, temperature and light sensor | |||
