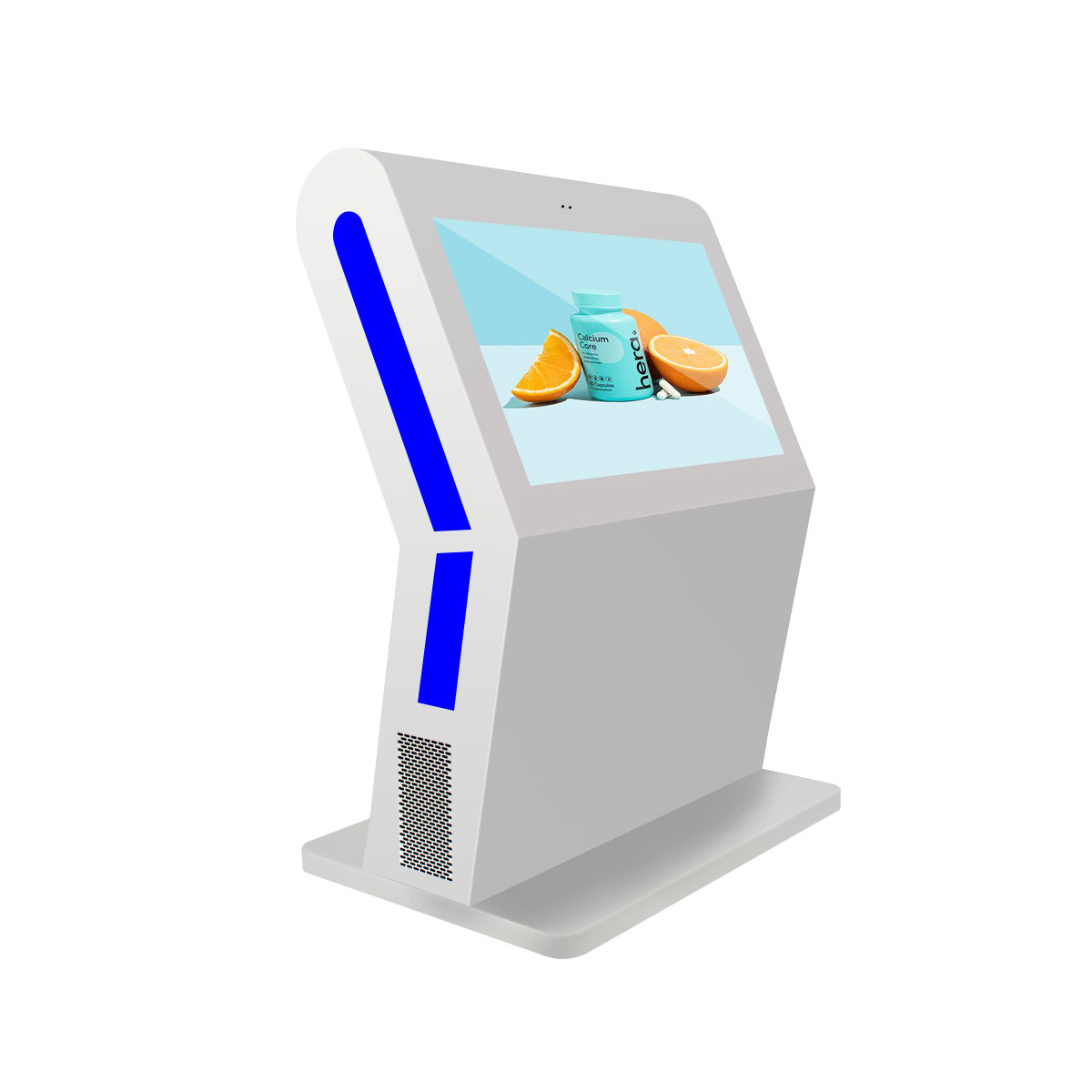

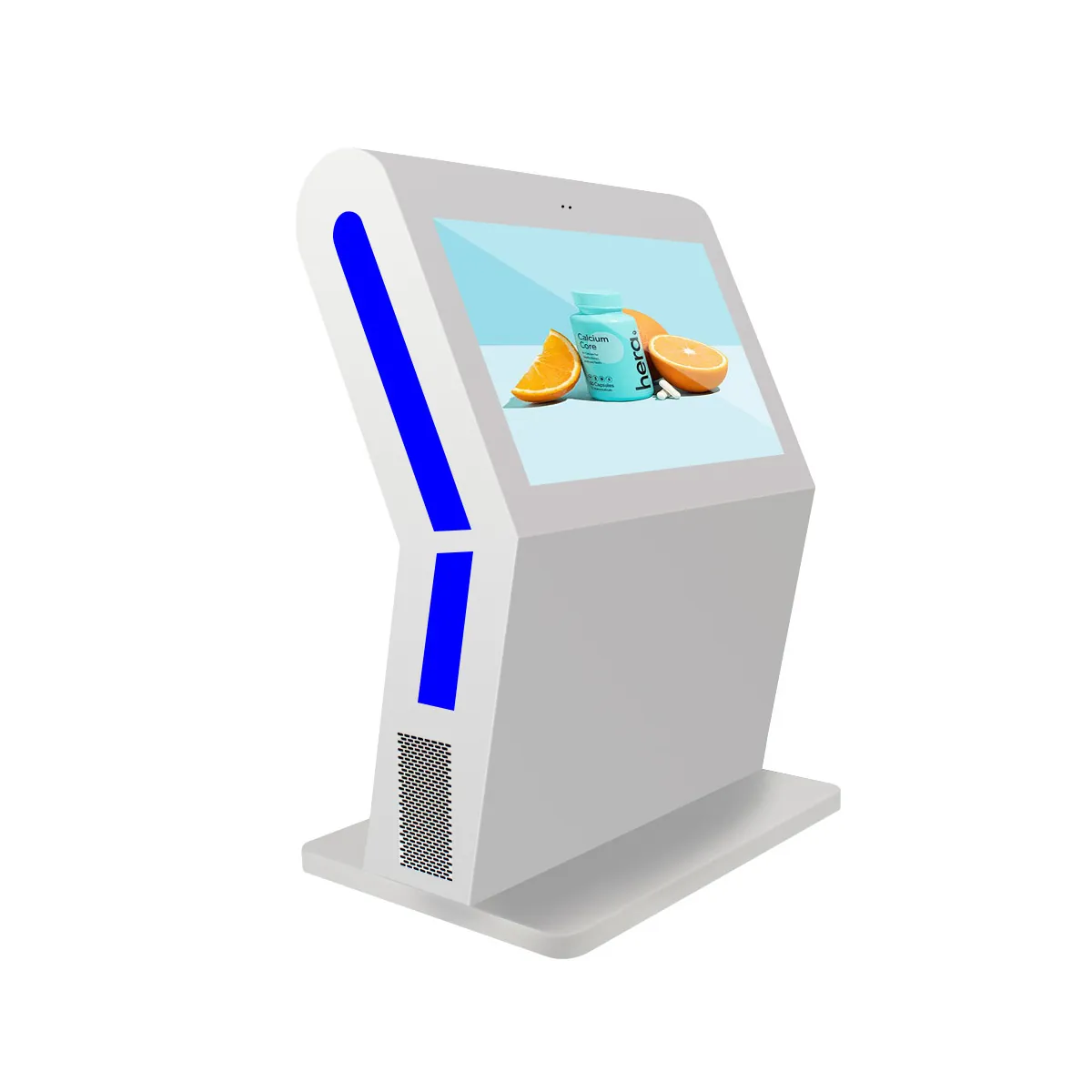

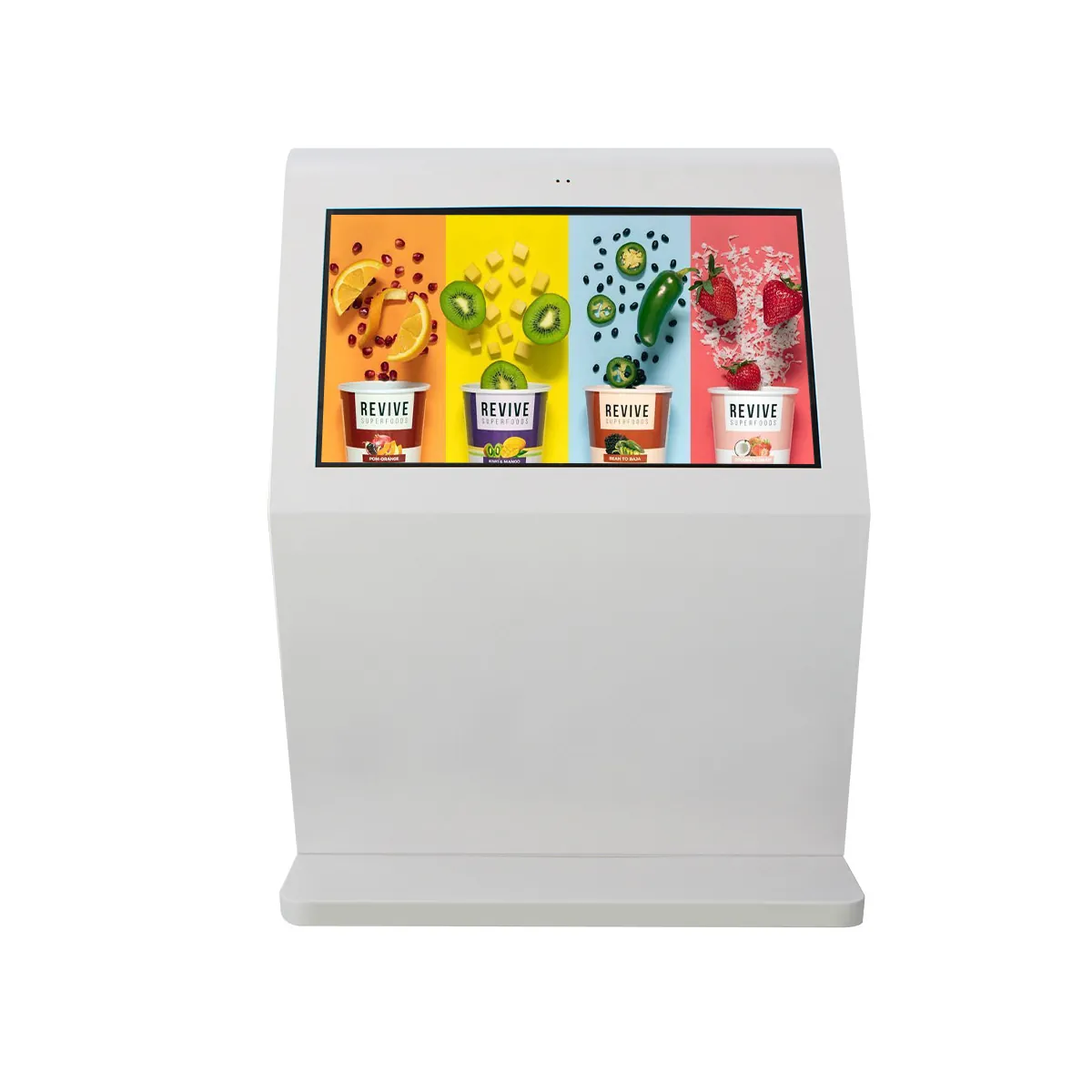

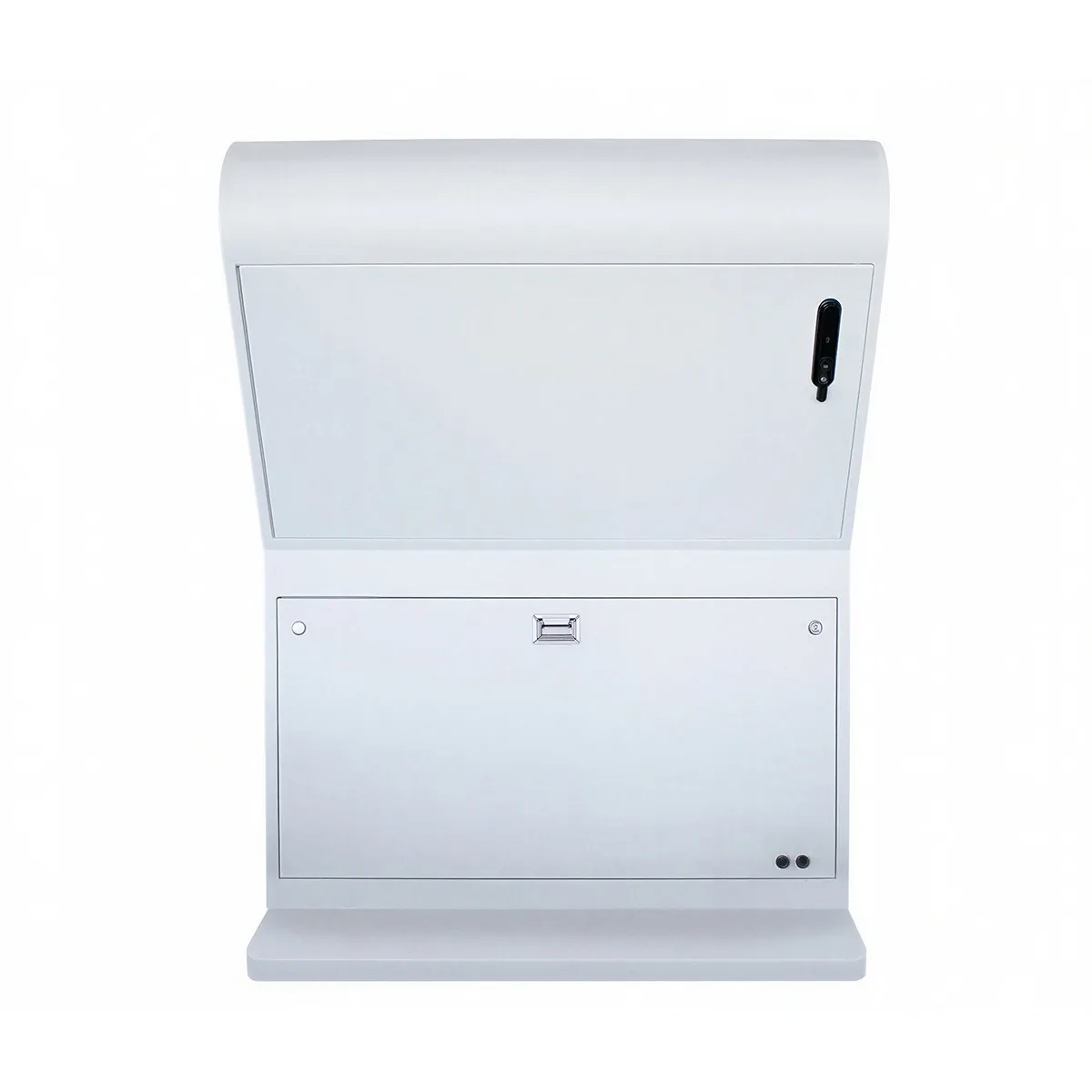

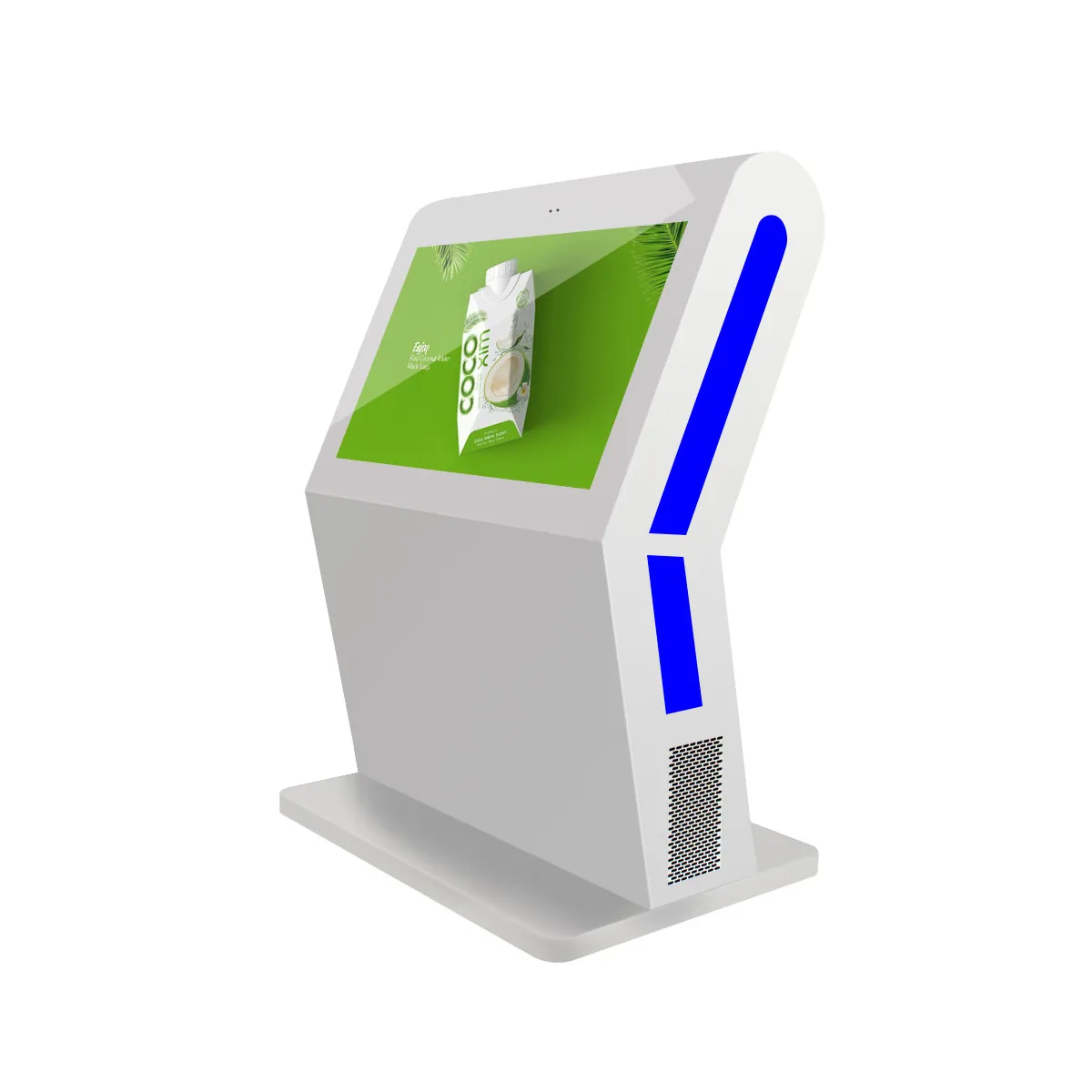

BS601 LCD Outdoor Digital Signage Display Interactive Kiosk With LED Light
Upit za proizvod
×Make Your Message. Widely. Effectively.
| Model Number | BS601 |
| Brand Name | Becker Screen |
| Certification | CE FCC ROHS ISO IP65 |
| Place of Origin | Shenzhen, China |
| Application | Outdoor |
| Input Voltage | AC100~240V 50 /60 HZ |
| Packaging | Bubble bag+packing foam+carton+wooden case |
| Delivery Detail | Batch order 15-30 days |
Commercial Digital Signage Display Product Description
Available Sizes: 19″ ~86″
（Option）Can pass the IK10 anti-collision level test; High visibility、anti-reflection;
（Option）Supporting marvel outdoor LCD maintenance cloud（OMC）control.
（Option）Polarzed sunglasses supporting
(Option)can supporting UV cut off and IR blocking.
Commercial Digital Signage Display Product Description
Available Sizes: 19″ ~86″
(Option）Can pass the IK10 anti-collision level test;
High visibility、anti-reflection;
(Option）Supporting marvel outdoor LCD maintenance cloud（OMC）control.
(Option）Polarzed sunglasses supporting
(Option)can supporting UV cut off and IR blocking.
Outdoor Maintenance Cloud (OMC) System
Key Functions
Each product includes 10 types of sensors: a light sensor, a door opening sensor, a humidity sensor, a temperature sensor, a vibration sensor, a safety monitoring sensor, a ponding sensor, a smog sensor, a collision sensor, and a tilt sensor.
Smart Maintenance:
▪ Real-time Status Monitoring
▪ Remote Troubleshooting
▪ Group Performance Diagnostics
▪ Anomaly Alert System
| Model | BS601 PC Version | BS601Android Version | |
|
Screen |
Panel Brand | Samsung & LG Full New 100% A+ Grade Brand Panel | |
| Panel size | 55″ (19″ ~86″) | ||
| Display size | 930mm(H)×523mm(V) | ||
| Display ratio | 16:9 | ||
| Resolution | 1080*1920 | ||
| Viewing angle | 89/89/89/89 (Min.)(CR≥10) | ||
| Color | 16.7M | ||
| Back light | LED | ||
| Brightness | 2500 cd/m2 | ||
| Contrast ratio | 3000:1 | ||
|
OS System |
main board:i5-3317U(optional) | CPU:RK3288(optional) | |
| RAM:4G,SSD:128G(optional) | RAM:2G,EMMC:8G(optional) | ||
| Operation | Windows 7(optional,win8,win8.1,win10) | Android 4.2(optional Android4.4.4/4.2.2/5.1.1/6.0.1/7.1.2) | |
| Connection to network | RJ45, WIFI (4G,optional) | RJ45, WIFI (4G,optional) | |
|
Touch Screen system
|
Touch screen | touch foil, capacitive | touch foil, capacitive
|
| Touch ways | finger,touch pen | finger,touch pen | |
| Touch dots | 10dots (optional,20dots,40dots) | 10dots (optional,20dots,40dots) | |
| Durability | More than 50 million touch | More than 50 million touch | |
|
Power |
Power | 450W | 450W |
| Voltage | AC100-240V 50/60HZ | AC100-240V 50/60HZ | |
| Stability | good | good | |
|
Instructions |
Interface | VGA/HDMI/USB | HDMI/USB/SD |
| Working
temperature |
-30°C ~ 60°C(with air conditioner）
-10°C ~55°C(with fan cooling） -30°C ~ 55°C(with fan cooling+heater)
|
-30°C ~ 60°C(with air conditioner）
-10°C ~55°C(with fan cooling） -30°C ~ 55°C(with fan cooling+heater)
|
|
| Material | Aluminum alloy,tempered glass | Aluminum alloy,tempered glass | |
| Surface | Spraying,frosted aluminum | Spraying,frosted aluminum | |
| Size | Undetermined | Undetermined | |
| Weight | Undetermined | Undetermined | |
|
Body |
Shell | Galvanized steel sheet. Thickness:2mm. | |
| Color | Black , white , silver or customized colors | ||
| Packing | By carton, wooden case, flight case （optional） | ||
|
Optional Functions |
Anti-dazzle、Anti-graffiti、Anti-glare,Anti-refection、
Anti-UV、Anti-IR、Water-proof、dust-proof、vandal proof |
||
| 3G/4G Capability, 3G/4G wifi network | |||
| Human sensor、Light sensor、Screen sensor、Humidity sensor、Temperature sensor、
Vibration sensor、Safty monitoring sensor、Ponding sensor、Smog sensor、Collision sensor、Tilt sensor |
|||
