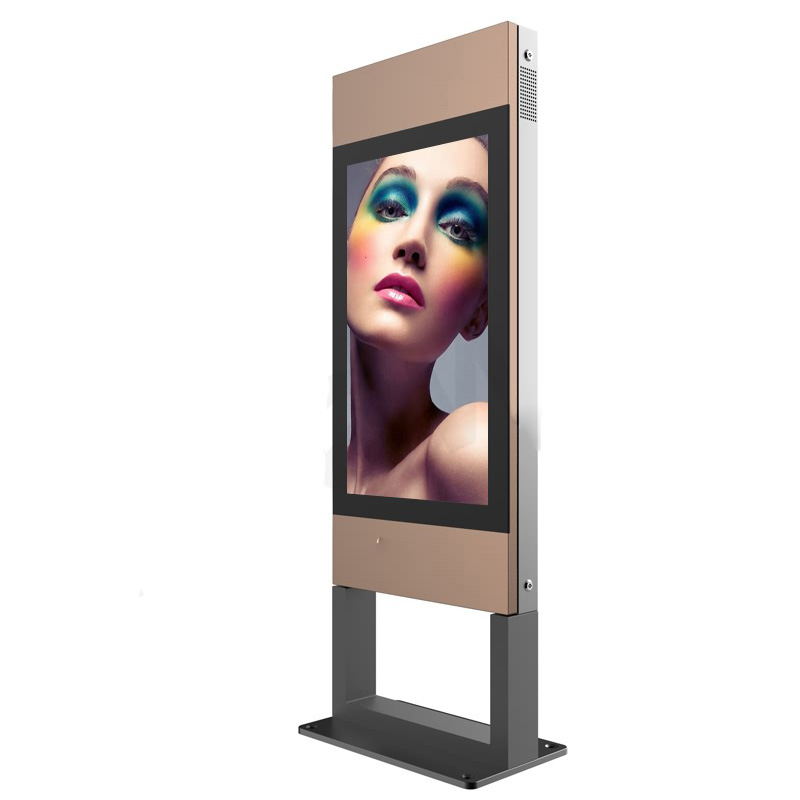

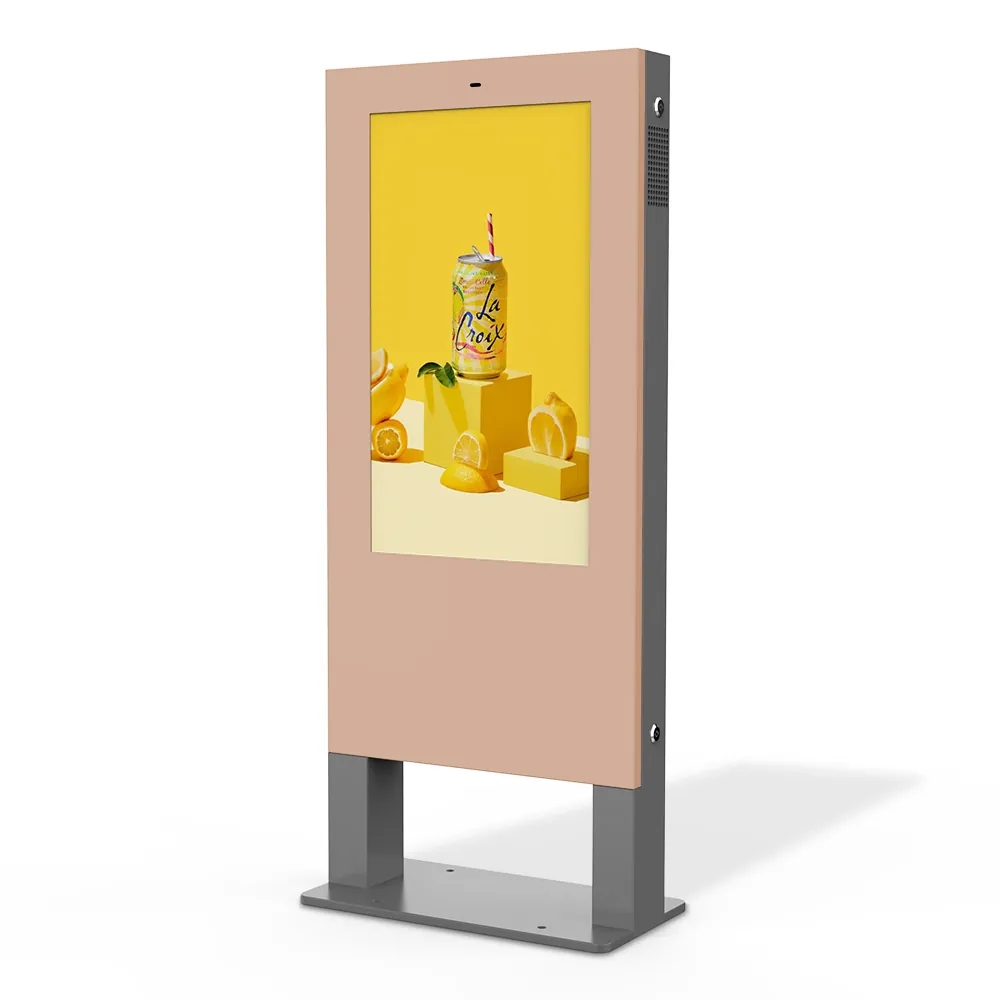

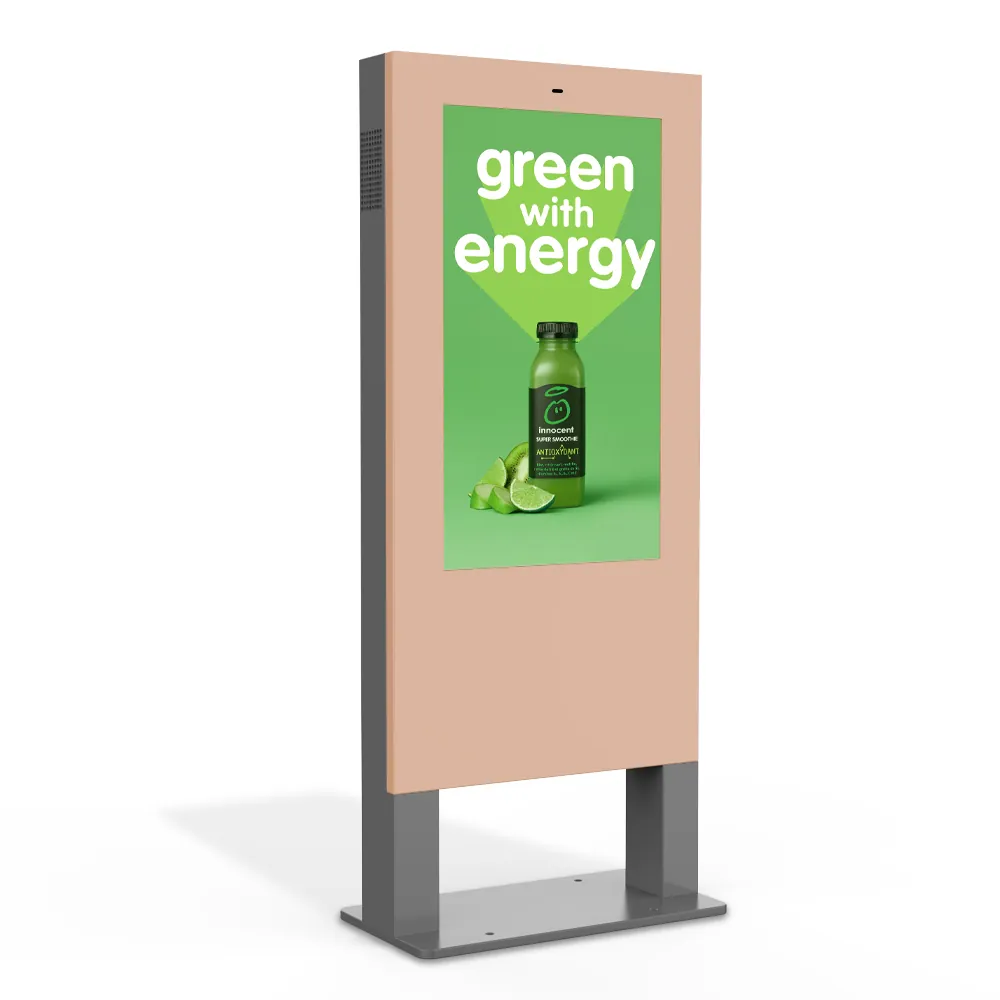

BS861 Outdoor High Light Digital Signage Display

Home
Products
BS861 Outdoor High Light Digital Signage Display

Make Your Message. Widely. Effectively.

Product description Technical specifications FAQ

Model Number	BS861
Brand Name	Becker Screen
Certification	CE FCC ROHS IP65
Place of Origin	Shenzhen, China
Application	Outdoor
Input Voltage	Input Voltage
Packaging	Bubble bag+packing foam+carton+wooden case
Delivery Detail	Batch order 15-30 days
Price offer terms	EXW (Ex Works) / FOB (Free On Board) / CIF (Cost, Insurance, and Freight) / DDP (Delivered Duty Paid) / DDU (Delivered Duty Unpaid) / DAP (Delivered At Place)

Available Sizes: 19″ ~86″

(Option）Can pass the IK10 anti-collision level test; High visibility、anti-reflection;

(Option）Supporting marvel outdoor LCD maintenance cloud（OMC）control.

(Option）Polarzed sunglasses supporting

(Option)can supporting UV cut off and IR blocking.

BS861 – Vanjski digitalni oglasni zaslon visoke svjetline je profesionalni vanjski oglasni zaslon visoke svjetline, dizajniran za maksimalnu vidljivost u svim vremenskim uvjetima. Opremljen Samsung ili LG A+ panelom dijagonale 42” (dostupne veličine 19”–86”), Full HD rezolucije 1080×1920 i svjetline 2500 cd/m², osigurava iznimno jasnu i čitljivu sliku čak i na izravnom suncu. Robusno kućište od pocinčanog čelika debljine 2 mm, kaljeno staklo i IP65 certifikat jamče otpornost na vodu, prašinu i vandalizam. Dostupan je u PC (Windows) ili Android verziji, s kapacitivnim touch zaslonom do 40 dodirnih točaka. Podržava RJ45, WiFi i opcionalni 4G. Radna temperatura od -30°C do 60°C omogućuje pouzdan rad tijekom cijele godine, uz CE, FCC i ROHS certifikate kvalitete.

Opcionalne funkcije

Zaštita od bliještanja, zaštita od grafita, antirefleksna zaštita, UV zaštita, IR zaštita, vodootpornost, otpornost na prašinu, otpornost na vandalizam
Podrška za 3G / 4G

Senzori:
senzor prisutnosti ljudi, senzor svjetla, senzor zaslona, senzor vlage, senzor temperature, senzor vibracija, sigurnosni nadzorni senzor, senzor zadržavanja vode, senzor smoga, senzor sudara, senzor nagiba

Model		MWE861 PC Version	MWE861 Android Version
Screen	Panel Brand	Samsung & LG Full New 100% A+ Grade Brand Panel
	Panel size	42″ (19″ ~86″）
	Display size	927mm(H)×521mm(V)
	Display ratio	16:9
	Resolution	1080*1920
	Viewing angle	89/89/89/89 (Min.)(CR≥10)
	Color	16.7M
	Back light	LED
	Brightness	2500 cd/m2
	Contrast ratio	3000:1
OS System	main board:i5-3317U(optional)		CPU:RK3288(optional)
	RAM:4G,SSD:128G(optional)		RAM:2G,EMMC:8G(optional)
	Operation	Windows 7(optional,win8,win8.1,win10)	Android 4.2(optional Android4.4.4/4.2.2/5.1.1/6.0.1/7.1.2)
	Connection to network	RJ45, WIFI (4G,optional)	RJ45, WIFI (4G,optional)
Touch Screen system	Touch screen	touch foil, capacitive	touch foil, capacitive
	Touch ways	finger,touch pen	finger,touch pen
	Touch dots	10dots (optional,20dots,40dots)	10dots (optional,20dots,40dots)
	Durability	More than 50 million touch	More than 50 million touch
Power	Power	330W	330W
	Voltage	AC100-240V 50/60HZ	AC100-240V 50/60HZ
	Stability	good	good
Instructions	Interface	VGA/HDMI/USB	HDMI/USB/SD
	Working temperature	-30°C ~ 60°C(with air conditioner） -10°C ~55°C(with fan cooling） -30°C ~ 55°C(with fan cooling+heater)	-30°C ~ 60°C(with air conditioner） -10°C ~55°C(with fan cooling） -30°C ~ 55°C(with fan cooling+heater)
	Material	Aluminum alloy,tempered glass	Aluminum alloy,tempered glass
	Surface	Spraying,frosted aluminum	Spraying,frosted aluminum
	Size	Undetermined	Undetermined
	Weight	Undetermined	Undetermined
Body	Shell	Galvanized steel sheet. Thickness:2mm.
	Color	Black , white , silver or customized colors
	Packing	By carton, wooden case, flight case （optional）
Optional Functions	Anti-dazzle、Anti-graffiti、Anti-glare,Anti-refection、 Anti-UV、Anti-IR、Water-proof、dust-proof、vandal proof
	3G/4G Capability
	Human sensor、Light sensor、Screen sensor、Humidity sensor、Temperature sensor、 Vibration sensor、Safty monitoring sensor、Ponding sensor、Smog sensor、Collision sensor、Tilt sensor
