| Panel |
|
| Panel Size |

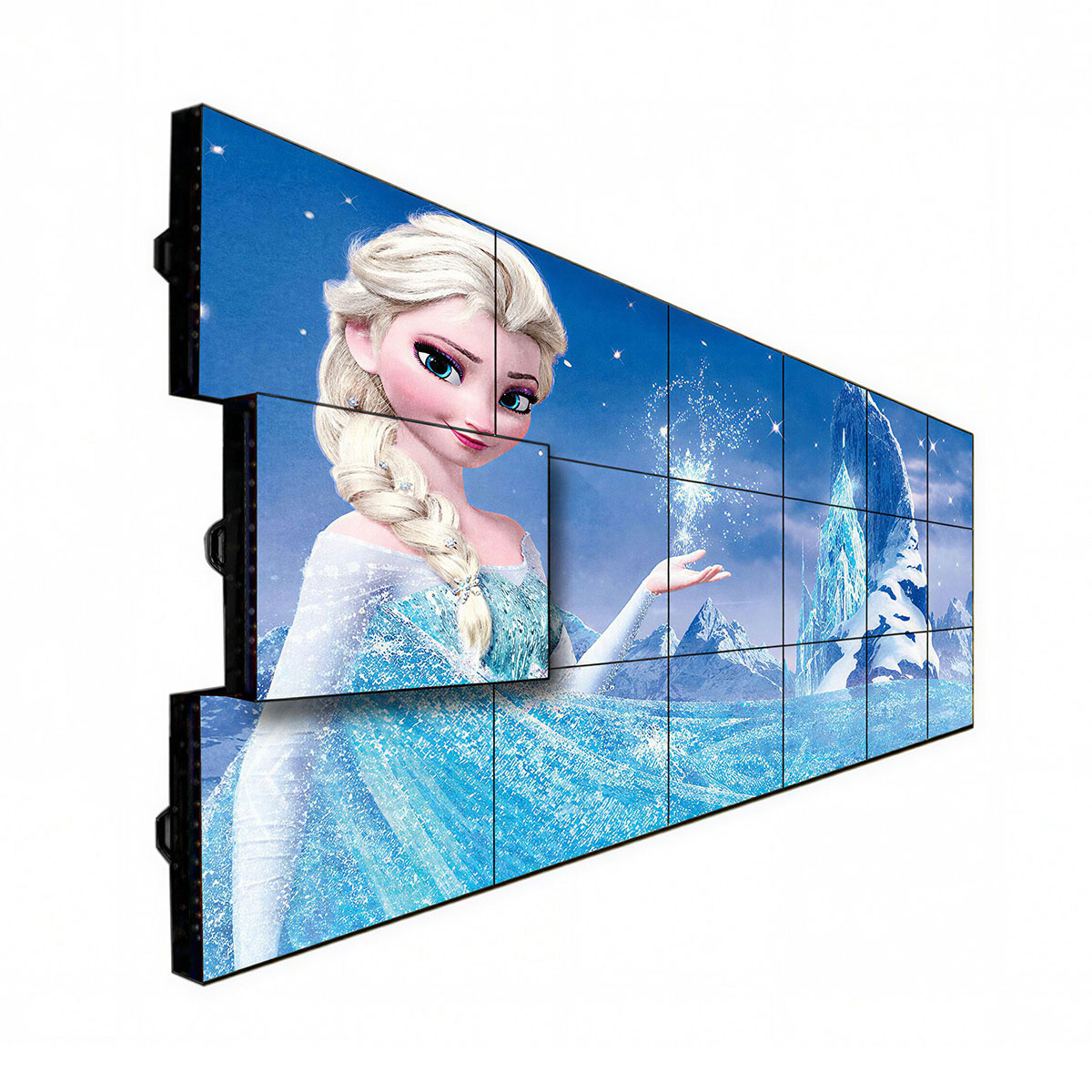

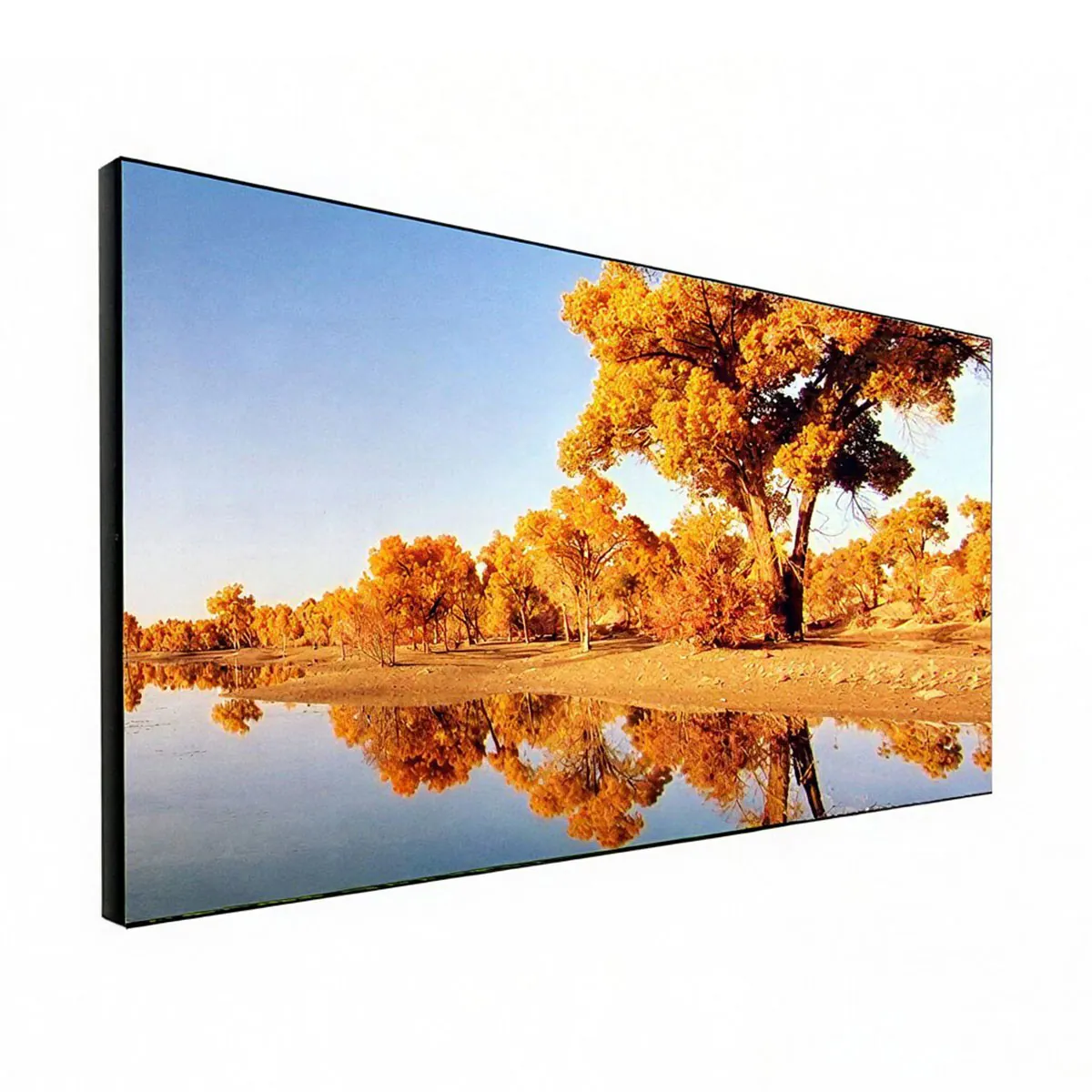

55 inch Super Narrow LCD Screen (with narrow bezel 3.9mm) |
| Splice bezel |
3.5mm |
| Aspect Ratio |
16:09 |
| Max Resolution Support |
1920×1080(H×V) |
| Color |
8Bit,16.7M |
| Brightness (nits) |
700 |
| Contrast ratio |
3500:1 |
| Visual Angle (H/V) |
89/89/89/89 (Min.)(CR≥10) |
| Response Time |
6ms |
| Life(hrs) |
>60,000(hrs) |
| Input and output |
|
| DVI |
1 |
| HDMI |
1 |
| D-15 RGB Input(VGA) |
1 |
| YUV/YPbPR |
1(3xBNC) |
| S-(YC) |
1(2xBNC) |
| Composite Video Input/(AV) |
3(3xBNC) |
| Composite Video Output |
2(2xBNC) |
| AUDIO INPUT |
1 |
| Split Screen |
Support Picture in Picture(PIP/POP/PAP) |
| Power |
|
| Power Supply |
AC100V~240V |
| Maximum Power Consumption |
230W |
| Standby Power Consumption |
<=3W |
| Working Temperature |
-30°C ~ 60°C(with air condition）-10°C ~55°C(with air follow exchange）-30°C ~ 55°C(with air follow exchange+heater) |
| Working Humidity |
20%-80% |
| Dimension |
1047.4×600.6x131mm |
| Video Wall Processor Controller |
|
| Model No. |
MV-P817W |
| DVI in |
1 |
| HDMI in |
1 |
| VGA in |
1 |
| Composite Video Input/(AV) |
1(BNC) |
| Composite Video Output |
1(BNC) |
| Control signal input and loop out |
RS232(RJ45-8) |
| Split Screen |
Sport Picture in Picture (PIP/POP) |
| power consumption |
Max 300W,according to different Screen models |
| Dimension |
338×295×60(mm) |
| Weight |
3.5-4.0kg |
