| Screen |
Resolution（4K） |
3840×2160 UHD (4K) |
| Display |
1874×1055 mm |
| Color area |
1.073 billion |
| Brightness |
450 cd/m2 |
| Contrast ratio |
5000 : 1 |
| View angle |
178° |
| Life(hrs) |
≥60000 |
| Touch |
40 points IR touch |
| Outshell |
Glass |
4mm tempered high explosion-proof Anti-glare glass |
| Material of outer casing |
super narrow design with black Aluminum alloy frame |
| Android OS |
CPU |
Quad-core Cortex-A55 |
| RAM |
8GB |
| Flash |
128GB |
| SD card |
Support MAX 128GB SD card |
| Operating system |
Android 14 |
| Input/Output |
Input: |
HDMI (x3), RGB/VGA (x1), RS232,Audio(x1). |
| Output: |
HDMI(x1),RJ 45(x2), USB3.0 (x4) (Front x2, Rear x2), USB TypeB (x2)(Front x1, Rear x1), Type C Front (x1) (PD65W + DP1.2 + Data USB2.0 + 10W100M sharing),Audio (x1), SPDIF (x1) |
| OPS window10 OS |
CPU |
Intel® Core™ i5-1240P Processor (12M Cache, up to 4.40 GHz) |
| RAM |
16G DDR4 |
| SSD |
256G SSD |
| Operating system |
Windows 11 (OEM) |
| WIFI |
High quality WiFi module included (802.11 B/G/N) |
| Other Features |
Speaker |
build-in high 20W /8Ω speaker × 2 pcs |
| Bluetooth & WIFI |
Support Wifi6.0, Bluetooth 5.1 |
| Environmental |
Working temperature |
0°C~50°C |
| Storage temperature |
(-20°C~60°C) |
| Working humidity |
10%RH ~ 90%RH |
| Accessories |
Remote control unit |
1 piece |
| touch pen |
2 piece |
| Wifi antenna |
1 piece |
| Power cable |
1 piece |
| Bracket |

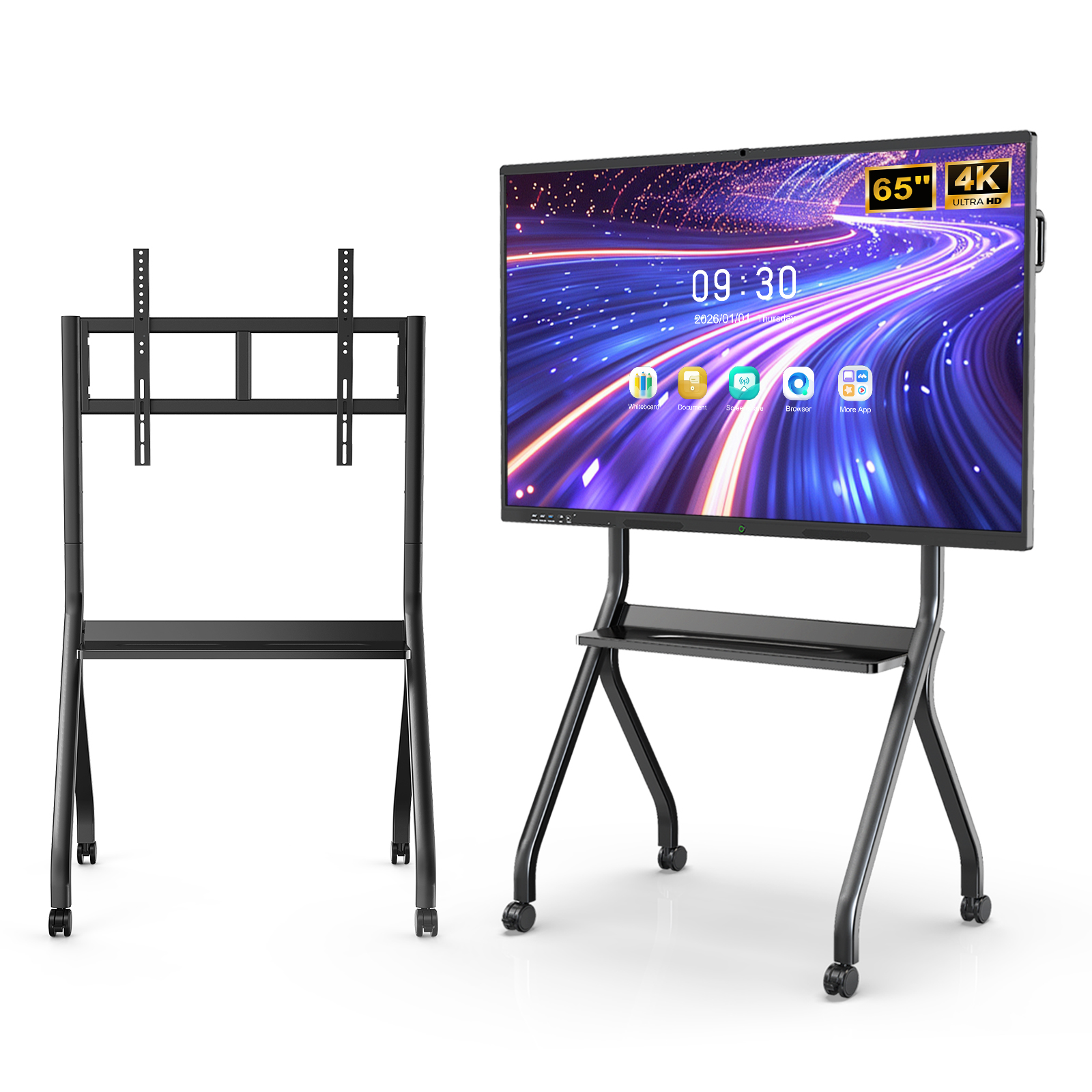

1 set VESA wall mounted bracket + floor stand bracket |
